Network Monitor Guide

Network performance issues cost businesses an average of $300,000 per hour in lost productivity and revenue. Most of these outages could be prevented with proper monitoring in place. A network monitor continuously tracks the health, performance, and availability of your infrastructure—servers, routers, switches, applications, and connections—alerting you to problems before users notice them.

Whether you manage a small office network or oversee enterprise infrastructure across multiple locations, choosing the right monitoring approach determines whether you catch issues early or scramble to fix them after complaints flood in.

What Is a Network Monitor and How Does It Work

A network monitor is software or a service that continuously observes network devices, connections, and traffic to measure performance and detect problems. Think of it as a surveillance system for your IT infrastructure—constantly checking that everything operates within normal parameters.

The monitoring process works through several mechanisms. The most common method uses Simple Network Management Protocol (SNMP), where the monitor queries devices at regular intervals (typically 1–5 minutes) to collect data about CPU usage, memory consumption, interface status, and error rates. Devices respond with this information, which the monitor logs and analyzes.

Beyond SNMP polling, modern network monitors employ multiple techniques. Packet sniffing captures and analyzes actual network traffic to measure bandwidth consumption by application or user. Flow analysis (using NetFlow, sFlow, or IPFIX) provides visibility into traffic patterns without examining every packet. Synthetic transactions actively test services by simulating user actions—attempting to load a web page, connect to a database, or transfer a file—then measuring response time and success rate.

The monitor tracks dozens of metrics simultaneously: bandwidth utilization on each interface, packet loss and latency between endpoints, device uptime, temperature readings from hardware sensors, application response times, and error counters. When any metric crosses a threshold you've defined—say, CPU usage exceeding 85% for five consecutive minutes—the system triggers an alert via email, SMS, Slack, or other channels.

Historical data accumulates in a database, enabling trend analysis. You might notice that bandwidth usage climbs 15% each quarter, signaling the need for capacity upgrades before congestion occurs. Or you could identify that a particular switch reboots every Tuesday at 2 AM, pointing to a firmware bug or scheduled task gone wrong.

Author: Caleb Merrick;

Source: clatsopcountygensoc.com

Device discovery happens automatically in most systems. The monitor scans your network ranges, identifies active devices, determines their type (router, switch, server, printer), and begins tracking them. This auto-discovery adapts as your network changes, though you'll typically need to provide SNMP credentials or configure agents on servers for detailed monitoring.

Types of Network Monitoring Tools

The monitoring landscape includes several distinct categories, each with specific deployment models and use cases.

Server-Based Network Monitors

A network monitor server runs on physical or virtual hardware within your own infrastructure. You install the software on a Windows or Linux server, configure it to scan your network, and access the monitoring console through a web interface or desktop application.

This on-premise approach gives you complete control over your monitoring data and doesn't depend on internet connectivity to function. The server polls devices directly on your local network, which reduces latency and works even if your internet connection fails. Companies with strict data governance requirements—healthcare organizations subject to HIPAA or financial institutions under regulatory scrutiny—often prefer keeping all monitoring data on-premises.

The trade-off is management overhead. You're responsible for the server's operating system, database maintenance, software updates, backup procedures, and ensuring the monitoring system itself stays available. If the server crashes, you lose visibility until you restore it. Sizing the server appropriately for your network scale requires planning—a server that monitors 50 devices needs far less compute and storage than one tracking 5,000 endpoints.

Popular server-based options include PRTG Network Monitor (Windows), Zabbix (Linux), and Nagios Core. These typically charge per sensor or device monitored, with licensing costs scaling as your network grows.

Online Network Monitoring Services

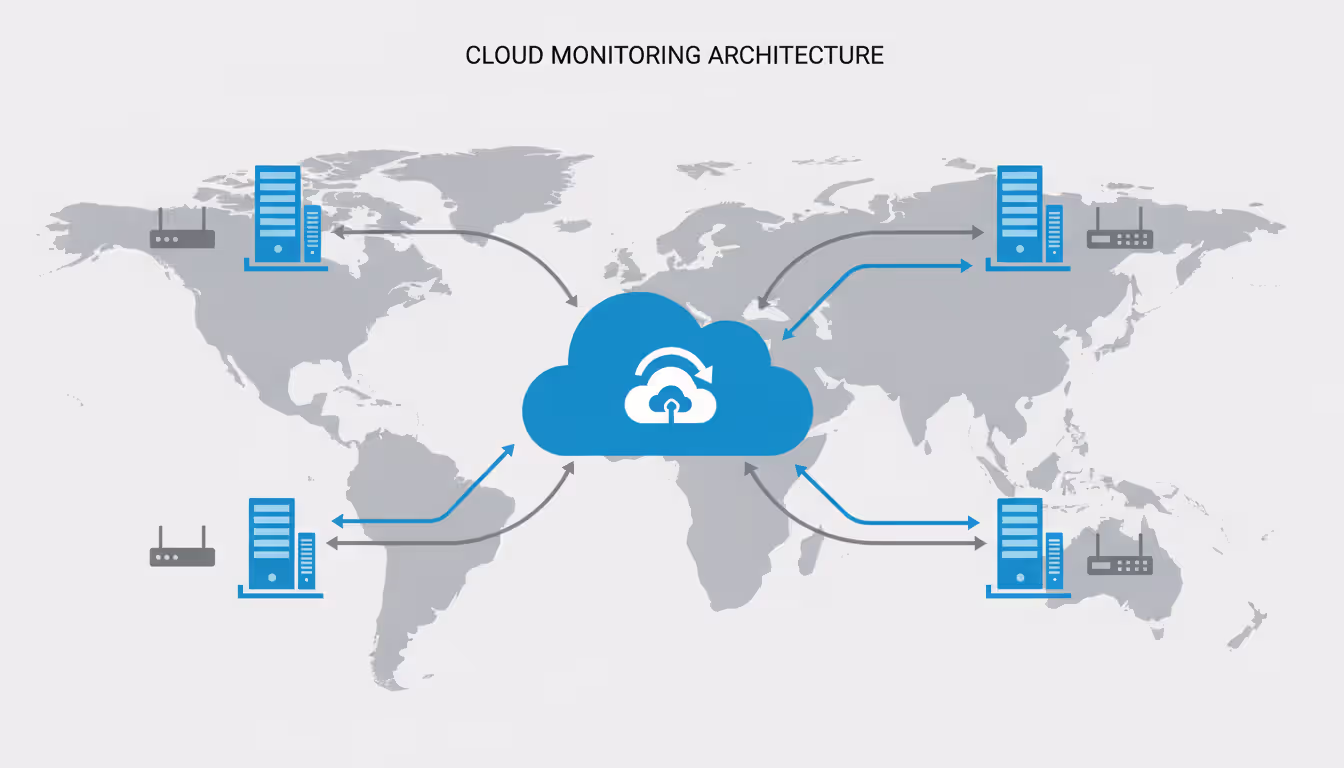

An online network monitor operates entirely in the cloud. You create an account with a monitoring provider, install lightweight agents on devices you want to track, and access everything through a web dashboard. The vendor handles all infrastructure, updates, and scaling.

This software-as-a-service model eliminates server management. You're monitoring within minutes rather than spending days setting up servers and databases. The service scales effortlessly—monitoring ten devices or ten thousand requires no infrastructure changes on your end. Providers typically offer mobile apps, so you can check network status and acknowledge alerts from anywhere.

Cloud-based monitoring excels at tracking distributed networks. If you have offices in Seattle, Austin, and Miami, a single online service monitors all locations from one console. External monitoring from the provider's infrastructure also validates that your services are reachable from the internet, catching issues that internal monitoring might miss.

The dependency on internet connectivity cuts both ways. If your internet connection fails completely, agents can't report to the cloud service, creating a monitoring blind spot precisely when you need visibility most. Some services cache data locally and sync when connectivity returns, but real-time alerting requires an active connection.

Pricing usually follows a subscription model—monthly or annual fees based on the number of devices, checks performed, or data retention period. Services like Datadog, New Relic, and Site24x7 fall into this category.

Author: Caleb Merrick;

Source: clatsopcountygensoc.com

Network Monitor Utilities vs. Full Platforms

A network monitor utility is a focused tool that performs specific monitoring tasks. Wireshark captures and analyzes packets. PingPlotter visualizes network latency and packet loss over time. MRTG graphs bandwidth usage. These utilities excel at their particular function but don't provide comprehensive monitoring.

System administrators often keep several utilities installed for troubleshooting. When users complain about slow application performance, you might use Wireshark to capture traffic, identifying that a misconfigured application is flooding the network with broadcast packets. Or you'd run PingPlotter to trace where latency spikes occur between your office and a cloud service.

Utilities typically require manual operation—you launch them when investigating a problem rather than running continuously. They generate data for immediate analysis but don't maintain historical databases or send alerts. Most are free or inexpensive, making them accessible for small teams or specific diagnostic needs.

Full monitoring platforms, by contrast, provide end-to-end visibility. They combine device monitoring, traffic analysis, alerting, reporting, and often extend into application performance monitoring and log management. A platform like SolarWinds Network Performance Monitor or ManageEngine OpManager handles everything from auto-discovery to capacity planning reports.

Platforms require more investment—both in licensing costs and time learning their extensive feature sets. For networks beyond 20–30 devices, the comprehensive visibility and automation justifies this investment. Smaller environments might find a few well-chosen utilities meet their needs without platform complexity.

Freeware vs. Paid Network Monitoring Solutions

Network monitor freeware ranges from surprisingly capable to frustratingly limited. Understanding where free tools fit helps you make informed decisions.

Nagios Core, Zabbix, and LibreNMS represent the strongest free options. These open-source platforms monitor hundreds or thousands of devices, support extensive customization, and have active communities providing plugins and advice. Organizations with skilled Linux administrators successfully run these in production, monitoring complex networks without licensing fees.

The catch is effort. Free tools rarely offer simple setup wizards or polished interfaces. Expect to edit configuration files, write custom scripts, and troubleshoot issues using community forums rather than vendor support. Documentation varies from excellent (Zabbix) to scattered across wikis and blog posts (Nagios). You're trading money for time—the software is free, but implementation requires significant technical investment.

Feature limitations also appear. Free versions might cap the number of devices monitored, restrict advanced features like distributed monitoring or custom dashboards, or lack mobile apps. Cacti provides excellent graphing but minimal alerting. Observium's free Community edition doesn't include automatic updates or official support.

Commercial solutions bundle features, support, and polish. When you pay for PRTG or WhatsUp Gold, you get installation wizards, pre-configured templates for common devices, phone support when problems arise, and regular updates with new features. The vendor ensures compatibility with the latest network equipment and operating systems.

Paid tools typically scale more gracefully. Adding 500 devices to a commercial platform might just increase your license cost, while the same expansion in a free system could require database tuning, performance optimization, and additional servers—work that demands expertise.

For small networks (under 25 devices) with technically capable staff, free tools often suffice. A startup with a skilled DevOps engineer might run Zabbix successfully. Mid-sized businesses (25–500 devices) usually find commercial tools worth the cost—the time saved and reduced complexity outweigh licensing fees. Enterprises often use both: commercial platforms for production monitoring with vendor support, plus free tools for specific use cases or lab environments.

Budget considerations extend beyond licensing. Calculate the fully-loaded cost: software licenses plus the staff time for setup, maintenance, and troubleshooting. A $5,000 annual license that requires 10 hours of admin time yearly costs less than a free tool needing 100 hours of configuration and upkeep.

Key Features to Look for in a Network Monitor

Effective monitoring requires specific capabilities. Prioritize these features when evaluating tools:

Real-time alerting with flexible thresholds determines whether you learn about problems immediately or discover them hours later. The monitor should let you set multiple threshold levels—warning at 80% CPU usage, critical at 95%—and require conditions to persist (high CPU for five minutes, not just one spike) to avoid false alarms. Alert routing sends database issues to the DBA team and network problems to network engineers, rather than spamming everyone about everything.

Automatic device discovery saves hours of manual configuration. The system should scan network ranges, identify devices via SNMP, WMI, or other protocols, and begin basic monitoring automatically. Advanced discovery recognizes device types—applying appropriate templates to Cisco routers versus Dell servers—and detects topology, mapping which devices connect to which switch ports.

Customizable dashboards and reporting transform raw data into actionable information. Dashboards provide at-a-glance status: green for healthy, yellow for warnings, red for critical issues. Executives need high-level views showing overall network health, while engineers want detailed graphs of specific metrics. Scheduled reports documenting uptime percentages and capacity trends support planning discussions and vendor SLA verification.

Protocol and technology support must match your environment. Basic SNMP monitoring works for most network gear, but servers require WMI (Windows) or SSH (Linux) for detailed metrics. Cloud infrastructure needs API integration with AWS, Azure, or Google Cloud. VoIP networks demand monitoring for jitter, packet loss, and Mean Opinion Score. Verify the tool supports your specific devices and applications before committing.

Historical data retention and analysis enables trend identification. Six months of bandwidth data reveals growth patterns. Temperature logs show whether that server room cooling upgrade actually helped. Retention policies balance storage costs against analytical needs—keep high-resolution data for 30 days, hourly averages for a year, daily summaries indefinitely.

Integration capabilities connect monitoring with your broader toolset. Webhook support sends alerts to Slack or Microsoft Teams. API access lets you pull monitoring data into custom dashboards or business intelligence tools. Ticketing system integration automatically creates help desk tickets when critical alerts fire, ensuring problems don't get overlooked.

A network monitor service that lacks these features will frustrate you quickly. A utility might excel at one aspect—packet capture or bandwidth graphing—but comprehensive monitoring demands this full feature set.

Common Network Monitoring Mistakes to Avoid

Even with the right tools, implementation mistakes undermine effectiveness.

Setting alert thresholds too aggressively creates alarm fatigue. If your monitor sends 50 emails daily about minor fluctuations, you'll start ignoring alerts—then miss the critical one about a failing hard drive. Thresholds should trigger only for conditions requiring attention. A server hitting 75% CPU briefly during backups is normal; sustained 95% usage indicates a problem. Tune thresholds based on your environment's baseline behavior.

Monitoring everything equally wastes attention. Your email server deserves more scrutiny than the break room printer. Implement tiered monitoring: critical systems get comprehensive checks every minute with immediate alerts, while less important devices receive basic monitoring with relaxed thresholds. This prioritization ensures you focus on what matters.

Author: Caleb Merrick;

Source: clatsopcountygensoc.com

Ignoring bandwidth trends leads to capacity crunches. Monthly bandwidth reports show whether you're approaching circuit limits. Identifying that your internet connection hits 85% utilization during business hours gives you months to plan an upgrade, rather than facing slowdowns when you hit 100%. Traffic analysis by application reveals whether legitimate business use or unauthorized streaming consumes bandwidth.

Overlooking security monitoring leaves blind spots. Network monitors detect unusual traffic patterns—a server suddenly transferring gigabytes of data at 3 AM might indicate a breach. Port scans, unexpected protocol usage, or devices communicating with suspicious external IPs warrant investigation. While network monitoring isn't a replacement for dedicated security tools, it provides valuable visibility.

Choosing tools that don't scale forces painful migrations later. That free utility perfect for 15 devices becomes unmanageable at 150. Evaluate your growth trajectory. If you expect to double device count within two years, select a platform that handles that scale without architectural changes.

Neglecting the monitoring system itself creates ironic failures. If your network monitor server crashes or runs out of disk space, you lose visibility precisely when you might need it most. Monitor the monitor: set up basic checks ensuring the monitoring system stays healthy, with alerts going to a secondary channel (a different email address or SMS) so you're notified even if the primary system fails.

Failing to document alert responses means repeating the same troubleshooting every incident. When an alert fires, document what you investigated and how you resolved it. Build a runbook over time: "High CPU on Exchange server: check for stuck mail queue, restart transport service if queue exceeds 1,000 messages." New team members resolve issues faster, and you avoid forgetting the solution to an infrequent problem.

How to Choose the Right Network Monitor for Your Needs

The best monitoring system is the one your team actually uses every day. I've seen expensive enterprise platforms sit idle because they were too complex, while simpler tools with good alerting saved businesses from major outages. Focus on reliability, clear alerts, and making sure your staff understands what the data means—not on having the most features

— Marcus Chen

Selecting appropriate monitoring requires matching tool capabilities to your specific requirements.

Network size and complexity heavily influence the right choice. A small office with 20 devices, one internet connection, and basic infrastructure succeeds with a simple utility or entry-level platform. A regional business with 300 devices across five locations needs a server-based or online network monitor that handles distributed monitoring. Enterprises with thousands of devices demand platforms supporting multiple monitoring servers, distributed databases, and role-based access for different teams.

Budget constraints extend beyond software costs. A free tool might seem attractive until you calculate the 60 hours your senior engineer will spend implementing it at $75/hour—$4,500 in labor that could have purchased a commercial solution with faster deployment. Conversely, a $20,000 enterprise platform makes no sense for a 50-device network when a $2,000 solution meets all requirements.

Deployment preferences matter for compliance and operational reasons. Regulated industries often require on-premise monitoring to maintain data custody. Organizations with limited IT staff prefer cloud services that eliminate server management. Companies with unreliable internet connections need local monitoring that functions during outages.

Technical skill level determines implementation success. Open-source platforms like Zabbix deliver tremendous value but demand Linux expertise, database knowledge, and troubleshooting skills. Commercial tools with graphical interfaces and vendor support suit teams with less specialized knowledge. Assess your team honestly—choosing a powerful tool they can't effectively use helps no one.

Specific monitoring requirements narrow the field. Need to monitor industrial equipment via Modbus? Verify support before purchasing. Require monitoring across AWS, Azure, and on-premise simultaneously? Cloud-native services often excel here. Heavy VoIP usage demands tools with specific telecommunications monitoring features.

Start by listing your must-have features, nice-to-have capabilities, and dealbreakers. Test several options—most vendors offer 30-day trials. Monitor your actual network during the trial, configure real alerts, and evaluate whether the tool's workflow matches how your team operates. A feature-rich platform that your staff finds confusing will deliver less value than a simpler tool they use effectively.

Consider the vendor's trajectory. An actively developed product with regular updates and a growing user base will serve you better than stagnant software, even if the latter currently has more features. Check release notes for the past year—frequent updates indicate ongoing investment.

Frequently Asked Questions About Network Monitoring

Network monitoring separates organizations that discover problems from user complaints from those that resolve issues before anyone notices. The right monitoring approach for your environment balances capability against complexity, matching tool features to your actual requirements rather than chasing every possible feature.

Start with clear objectives: which systems absolutely cannot fail, what metrics indicate impending problems, and how quickly you need to know when issues occur. Build monitoring incrementally—get basic device and connectivity monitoring working first, then add traffic analysis, application monitoring, and advanced features as you gain experience.

The monitoring landscape continues evolving, with AI-assisted anomaly detection, improved cloud integration, and deeper application visibility becoming standard. Regardless of technological advances, the core principle remains: you can't fix problems you don't know about. Effective monitoring provides the visibility to maintain reliable network operations, plan capacity upgrades, and quickly resolve the inevitable issues that arise.
