Network mapping is the process of discovering, visualizing, and documenting all devices, connections, and relationships within a computer network. Think of it as creating a detailed blueprint that shows every router, switch, server, workstation, printer, and IoT device connected to your infrastructure—along with how they communicate.

For IT teams, this visibility solves a fundamental problem: you can't manage what you can't see. A comprehensive network map reveals the actual topology of your environment, not just what you think exists based on outdated documentation or tribal knowledge.

The benefits extend across multiple operational areas. When troubleshooting connectivity issues, administrators can trace packet paths and identify bottlenecks in minutes rather than hours. Security teams use maps to spot rogue access points or unauthorized devices that bypass standard onboarding procedures. Compliance officers rely on accurate topology data to demonstrate network segmentation for PCI-DSS or HIPAA audits.

Network mapping also supports capacity planning. By visualizing bandwidth utilization across links and identifying oversubscribed segments, infrastructure teams can make data-driven decisions about upgrades before performance degrades. During incident response, a current map helps responders understand blast radius and isolate affected systems quickly.

The alternative—managing networks blindly—leads to configuration drift, shadow IT proliferation, and extended downtime during outages. Organizations with 50+ devices typically reach a complexity threshold where manual tracking becomes unreliable.

IT administrator workstation displaying an interactive network topology map on a widescreen monitor in a dimly lit office

How Network Mapping Works

Network mapping relies on active discovery protocols to probe your infrastructure and collect device information. The process typically starts with defining an IP address range to scan—your entire subnet or specific segments you want to inventory.

SNMP (Simple Network Management Protocol) serves as the workhorse for managed device discovery. When enabled on network equipment, SNMP allows mapping tools to query device properties: hostname, interface details, ARP tables, routing information, and neighboring device relationships via CDP or LLDP. Most enterprise switches and routers support SNMP v2c or v3, though v3 provides encryption for credential protection.

ICMP (Internet Control Message Protocol) handles basic reachability testing. Tools send ping requests to determine which IP addresses respond, providing a quick inventory of live hosts. While less informative than SNMP, ICMP works across device types without requiring configuration changes.

WMI (Windows Management Instrumentation) and SSH enable deeper inspection of servers and workstations. These protocols allow tools to gather installed software, running services, open ports, and operating system details—useful for asset management beyond pure topology mapping.

The discovery phase generates raw data: MAC addresses, IP assignments, open ports, device types. Mapping software then correlates this information to build a topology model. If Device A's ARP table shows Device B's MAC address on port 12, the tool infers a direct connection. By chaining these relationships across all discovered devices, the software constructs the full network graph.

Visualization engines render this data as diagrams—typically using hierarchical layouts for campus networks or geographic views for multi-site environments. Modern tools automatically position devices to minimize line crossings and highlight critical paths.

Most solutions run discovery on schedules (daily, weekly) to keep maps current as devices join or leave the network. Change detection features flag new devices or modified connections since the last scan.

Types of Network Mapping Tools

The market offers diverse approaches to network mapping, each with distinct trade-offs.

Automated versus manual tools represent the primary divide. Automated utilities perform scheduled scans with minimal human intervention, continuously updating topology data. Manual tools require administrators to initiate discovery and interpret results. Automated solutions suit dynamic environments where devices frequently change; manual approaches work for small, stable networks where quarterly updates suffice.

Open-source versus commercial software impacts both cost and feature depth. Open-source options like Nmap or OpenNMS provide core discovery capabilities without licensing fees, appealing to budget-conscious teams or those wanting customizable code. Commercial platforms bundle mapping with monitoring, alerting, configuration management, and vendor support—justified when you need integrated workflows or lack in-house expertise to maintain open-source deployments.

Cloud-based versus on-premises utilities differ in deployment model. Cloud platforms require no local infrastructure and scale elastically, but necessitate granting a SaaS vendor network access—a concern for security-sensitive environments. On-premises tools keep all data internal and work in air-gapped networks, though they demand server resources and maintenance overhead.

Agent-based versus agentless architecture affects deployment complexity. Agentless tools rely solely on network protocols (SNMP, WMI), avoiding software installation on endpoints. Agent-based solutions install lightweight collectors on servers for richer telemetry but require coordinating software rollouts and updates across your fleet.

Hybrid tools combine approaches—offering both agentless discovery and optional agents for enhanced visibility. This flexibility lets teams start simple and add depth where needed.

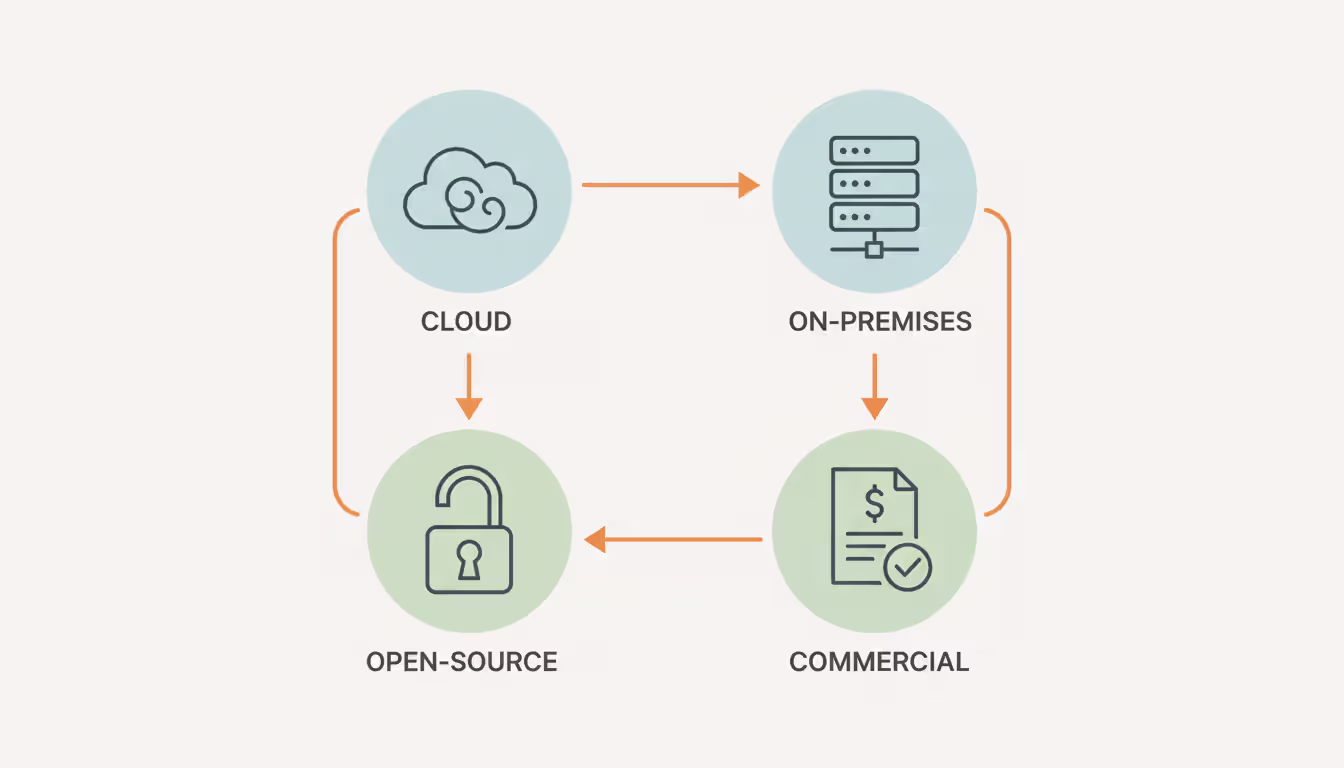

Infographic showing four categories of network mapping tools with flat icons for cloud, on-premises, open-source, and commercial solutions

Choosing the Right Network Mapping Tool for Your Needs

Selecting a network mapping utility requires aligning capabilities with your operational context.

Network size fundamentally shapes tool requirements. Environments with under 100 devices can often use free utilities or simple commercial products focused purely on topology. Mid-size networks (100-1,000 devices) benefit from automated discovery and basic change tracking. Enterprise-scale deployments (1,000+ devices, multiple sites) demand distributed polling, database scalability, and role-based access controls for team collaboration.

Budget constraints determine whether you explore free options, pay per-device licensing, or invest in comprehensive platforms. Free tools work well for initial mapping projects or small offices but typically lack automated updates and advanced features. Mid-tier commercial products ($500-$5,000 annually) add scheduling and export capabilities. Enterprise suites ($10,000+) integrate mapping with broader network management functions.

Feature priorities vary by use case. Security-focused teams need vulnerability correlation and compliance reporting. Capacity planners want bandwidth utilization overlays. Documentation-driven organizations prioritize export to Visio or PDF with customizable layouts. List your must-have features before evaluating products to avoid paying for unused capabilities.

Ease of use matters for teams without dedicated network engineers. Some tools require deep protocol knowledge and command-line comfort; others offer wizard-driven setup and point-and-click interfaces. Consider who will operate the tool day-to-day and their skill level.

Integration capabilities become critical in mature IT environments. Can the tool import data from your CMDB? Does it export to your ticketing system? API availability enables automation workflows—triggering maps after change windows or feeding topology data to security tools.

A practical approach: start with a free utility to understand your baseline requirements, then trial commercial options that address gaps you identified. Most vendors offer 30-day evaluations with full feature access.

Best Network Mapping Tools in 2026

The network mapping landscape has matured significantly, with several platforms dominating different market segments.

SolarWinds Network Topology Mapper remains popular among Windows-centric organizations. It automatically discovers Layer 2 and Layer 3 topology using SNMP, ICMP, and WMI, then generates Visio-compatible diagrams. The tool excels at scheduled mapping and change detection, highlighting new devices in red. Best for: mid-size enterprises needing regular documentation updates. Pricing starts around $1,500 for 100 devices.

Auvik leads in the cloud-based category, offering SaaS delivery with multi-tenant support for managed service providers. Real-time topology updates and automatic network documentation appeal to teams wanting hands-off operation. Traffic analytics overlays show bandwidth consumption on each link. Best for: organizations comfortable with cloud tools and MSPs managing multiple client networks. Per-device monthly subscription model.

Nmap (Network Mapper) serves as the Swiss Army knife of open-source discovery. While primarily a port scanner, its scripting engine enables topology mapping through custom NSE scripts. Command-line operation requires technical proficiency, but the tool handles diverse environments without licensing costs. Best for: security professionals, Linux administrators, and budget-constrained teams with scripting skills.

ManageEngine OpManager bundles network mapping with performance monitoring and fault management. Its strength lies in correlating topology with real-time metrics—showing not just connections but also utilization and health status. Best for: teams wanting unified visibility across mapping and monitoring. Perpetual licensing available alongside subscription options.

Lansweeper focuses on IT asset management with strong network discovery capabilities. Beyond topology, it inventories software, tracks warranties, and manages licenses. Best for: organizations prioritizing asset lifecycle management over pure network visualization. Pricing based on discovered assets.

PRTG Network Monitor includes mapping as part of its broader monitoring suite. Auto-discovery builds device trees and dependency maps, with sensors monitoring availability and performance. Best for: small to mid-size businesses wanting an all-in-one monitoring platform. Free tier covers up to 100 sensors.

NetBrain targets enterprise networks with intent-based automation and dynamic mapping. Its "executable runbooks" let engineers embed diagnostic commands directly in topology diagrams. Best for: large enterprises with complex multi-vendor environments requiring advanced troubleshooting workflows. Premium pricing reflects enterprise focus.

Tool Name

Free/Paid

Key Features

Best For

Platform Support

SolarWinds NTM

Paid

Auto-discovery, Visio export, scheduling

Mid-size Windows environments

Windows

Auvik

Paid (subscription)

Cloud-based, real-time updates, traffic analytics

MSPs and cloud-forward teams

Web-based (SaaS)

Nmap

Free (open-source)

Port scanning, NSE scripts, flexible discovery

Security pros, technical users

Windows, Linux, macOS

ManageEngine OpManager

Paid

Integrated monitoring, performance correlation

Unified monitoring needs

Windows, Linux

Lansweeper

Paid

Asset management, software inventory, warranty tracking

Asset lifecycle focus

Windows, Linux

PRTG Network Monitor

Free tier / Paid

Sensors-based monitoring, auto-discovery

Small-to-mid businesses

Windows (server), web UI

NetBrain

Paid (enterprise)

Intent-based automation, executable runbooks

Large multi-vendor networks

Windows, web UI

Spiceworks

Free

Community-driven, basic mapping, help desk

Small businesses, budget-limited

Windows

Free Network Mapping Utilities Worth Trying

Budget constraints don't eliminate mapping options—several quality free tools provide substantial capabilities.

Nmap deserves mention again for its zero-cost, full-featured discovery engine. While it requires command-line comfort, the Zenmap GUI wrapper makes basic operations accessible. Nmap excels at host discovery and service enumeration but requires additional scripting for visual topology generation. Limitations include no automated scheduling (you'll need cron or Task Scheduler) and minimal built-in visualization. Ideal scenario: one-time network audits, security assessments, or environments where scripting expertise exists.

Spiceworks Network Inventory offers free network mapping alongside help desk and inventory features, supported by ad revenue. The tool automatically discovers devices via SNMP and WMI, generating interactive network maps with drill-down capabilities. Limitations center on performance—large networks (500+ devices) may experience slow scans. The ad-supported model also means less frequent updates than commercial alternatives. Ideal scenario: small businesses (under 250 devices) wanting integrated IT management without licensing costs.

Angry IP Scanner provides fast, lightweight host discovery across IP ranges. It pings addresses, resolves hostnames, and detects open ports with minimal resource consumption. The tool exports results to CSV for external analysis. Limitations are significant: no topology visualization, no SNMP support, and purely manual operation. Ideal scenario: quick IP address audits, validating DHCP scope utilization, or preliminary scans before deploying comprehensive tools.

LibreNMS represents a full-featured open-source network monitoring system with robust auto-discovery and topology mapping. It supports SNMP, distributed polling, and API access. Setup complexity is the primary limitation—requiring Linux server deployment, database configuration, and ongoing maintenance. Documentation has improved but still assumes technical proficiency. Ideal scenario: organizations with Linux expertise wanting enterprise-grade capabilities without licensing fees, or learning environments for network engineers.

Free tools trade convenience and polish for cost savings. They work well for initial mapping projects, proof-of-concept deployments, or environments where technical staff can handle setup complexity. Most organizations eventually migrate to commercial solutions as networks grow and automation becomes essential.

Computer screen showing command-line network scan results alongside a visual network map on a second monitor with dark theme interface

Common Mistakes When Mapping Your Network

Even experienced teams stumble when implementing network mapping practices.

Incomplete discovery tops the list. Administrators scan only managed switches while ignoring wireless access points, printers, and IoT devices. This creates blind spots—your map shows backbone infrastructure but misses 40% of connected endpoints. Solution: expand scan ranges to cover all subnets and enable multiple discovery protocols (SNMP, WMI, SSH) to capture diverse device types.

Ignoring map updates renders documentation obsolete quickly. An initial mapping project generates a beautiful diagram, but without scheduled refreshes, it becomes fiction within months as devices are added, moved, or decommissioned. Solution: automate discovery on weekly or bi-weekly schedules and configure change alerts to notify teams of topology modifications.

Lack of documentation context produces maps that show connections without explaining purpose. A diagram displaying 50 interconnected devices helps little when troubleshooting if you can't identify which VLAN carries production traffic versus guest access. Solution: annotate maps with labels, color-code by function or security zone, and maintain separate logical views (VLANs, routing domains) alongside physical topology.

Digital shield with lock icon surrounded by network device icons connected by green secure and red insecure glowing lines on dark blue background

Security oversights during discovery can expose credentials or create vulnerabilities. Storing SNMP community strings in plaintext configuration files, using SNMPv2c instead of v3, or granting excessive WMI permissions all introduce risk. Solution: use SNMPv3 with encryption, store credentials in secure vaults, apply least-privilege principles for discovery accounts, and restrict tool access to authorized personnel.

Over-reliance on automation without validation leads to mapping errors propagating unnoticed. Tools misidentify device types, incorrect LLDP data creates phantom connections, or stale ARP entries show devices that moved weeks ago. Solution: periodically spot-check automated maps against known configurations, validate critical paths manually, and investigate anomalies rather than assuming tool accuracy.

Scope creep paralysis prevents teams from starting because they want perfect, comprehensive maps immediately. Waiting to map until you've documented every closet switch delays benefits indefinitely. Solution: begin with core infrastructure, deliver initial value, then incrementally expand scope to edge devices and remote sites.

Format lock-in occurs when maps exist only in proprietary tool formats, making them inaccessible during outages or after vendor changes. Solution: regularly export maps to standard formats (PDF, PNG, Visio) and store copies in accessible repositories outside the mapping tool itself.

Network mapping has evolved from a documentation exercise to a foundational security control.When we respond to incidents, the first question is always 'what's actually on the network?' Organizations without current maps waste hours during critical response windows just figuring out their own infrastructure. Automated mapping isn't optional anymore—it's basic operational hygiene
— Jennifer Martinez

Frequently Asked Questions About Network Mapping

What is the difference between network mapping and network monitoring?

Network mapping creates a point-in-time snapshot of your network topology—which devices exist and how they connect. Monitoring continuously tracks device availability, performance metrics, and traffic patterns over time. Mapping answers "what is connected to what," while monitoring answers "is it working and how well." Many modern platforms combine both functions, using topology data to provide context for monitoring alerts. You need mapping to understand your infrastructure layout; you need monitoring to know when something breaks.

How often should I update my network map?

Update frequency depends on your environment's change velocity. Networks with frequent device additions (retail stores deploying new POS systems, growing SaaS companies adding servers weekly) benefit from daily automated scans. Stable environments with quarterly change windows can update monthly. At minimum, refresh maps after major changes—office moves, data center migrations, or infrastructure upgrades. Automated tools eliminate the "should we update" question by continuously discovering changes. A practical rule: if your map is more than 30 days old in a dynamic environment, it's probably inaccurate.

Can network mapping tools detect unauthorized devices?

Yes, mapping tools excel at identifying rogue devices—that's one of their primary security benefits. By establishing a baseline of authorized devices, tools flag anything new appearing on scans: an employee's personal router creating a backdoor, an unauthorized wireless access point, or a compromised IoT device. Effectiveness depends on comprehensive scanning (covering all subnets) and timely alerts. Some advanced tools integrate with NAC (Network Access Control) systems to automatically quarantine unknown devices. However, mapping alone won't stop sophisticated attackers who spoof MAC addresses or compromise existing authorized devices.

Do I need a network mapping tool if I have a small network?

Networks under 20 devices can often be documented manually with spreadsheets or simple diagrams. Beyond that threshold, manual tracking becomes error-prone and time-consuming. Even small networks (20-50 devices) benefit from mapping tools when you factor in staff turnover—tribal knowledge walks out the door when your sole network-savvy employee leaves. Free tools like Spiceworks or Angry IP Scanner provide value without cost. The real question: how quickly can you troubleshoot issues or onboard new IT staff without current documentation? If the answer is "slowly" or "it depends who's available," you need mapping.

Are free network mapping tools secure enough for business use?

Security depends more on deployment practices than free-versus-paid licensing. Open-source tools like Nmap undergo extensive community scrutiny and rapid vulnerability patching. However, free tools typically lack enterprise security features: role-based access controls, audit logging, encrypted credential storage, or compliance certifications. For business use, evaluate: Does the tool encrypt stored credentials? Can you restrict access to authorized users? Does it log discovery activities? If your compliance requirements demand SOC 2 attestation or vendor security questionnaires, commercial tools provide necessary documentation. For non-regulated environments, properly configured free tools offer adequate security.

What file formats can network maps be exported to?

Export formats vary by tool but commonly include: PDF (for documentation and sharing with non-technical stakeholders), PNG/JPEG (for embedding in presentations or wikis), Visio (for further editing and integration with Microsoft workflows), SVG (scalable vector graphics for web publishing), CSV (device lists for spreadsheet analysis), and XML/JSON (for programmatic access and integration with other systems). Enterprise tools often support multiple formats simultaneously. Choose tools offering your required export formats—if your organization standardizes on Visio for all diagrams, ensure compatibility before committing to a platform.

Network mapping transforms infrastructure from an abstract concept into a concrete, manageable asset. Whether you choose free utilities for a small office or enterprise platforms for multi-site deployments, the core value remains: visibility enables control.

Start by mapping your core infrastructure—routers, switches, and servers that form your network backbone. Validate the results against known configurations to build confidence in tool accuracy. Then expand incrementally to edge devices, wireless infrastructure, and remote sites. Automate discovery to keep maps current without manual effort.

The investment—whether time learning open-source tools or budget for commercial platforms—pays dividends during the next outage, security incident, or audit. Teams with current network maps resolve issues faster, onboard new staff more efficiently, and make better infrastructure decisions backed by actual topology data rather than assumptions.

Your network exists whether you map it or not. The question is whether you'll manage it deliberately with accurate documentation or reactively with outdated guesses.
